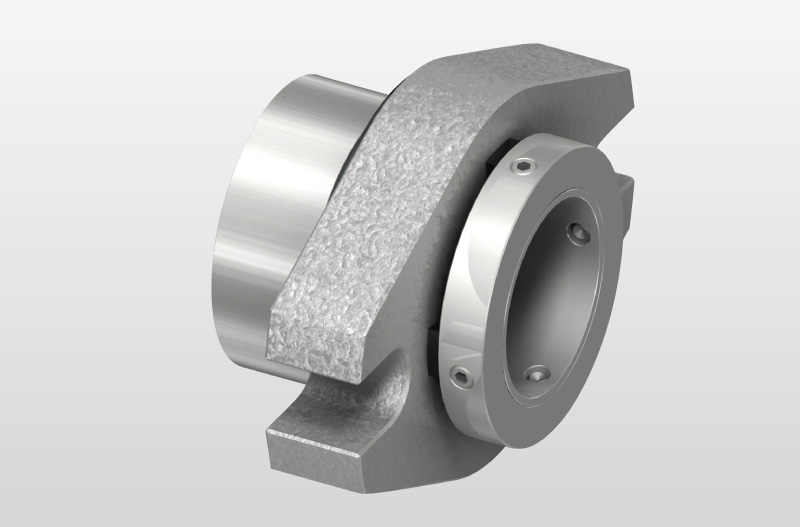

Технические параметры:
Давление: ≤2.5MPa
Ско¬рость: ≤20m/s
Температура: ≤+120˚C
● Подвижное кольцо(карбид кремния/углеграфит/карбид вольфрама)
● Неподвижное кольцо(карбид кремния/карбид вольфрама)
● Вспомогательное уплотнение(фторкаучук/обшивной круг/тефлон)
● Другие детали (нержавеющая сталь/титан/Hastelloy-C)

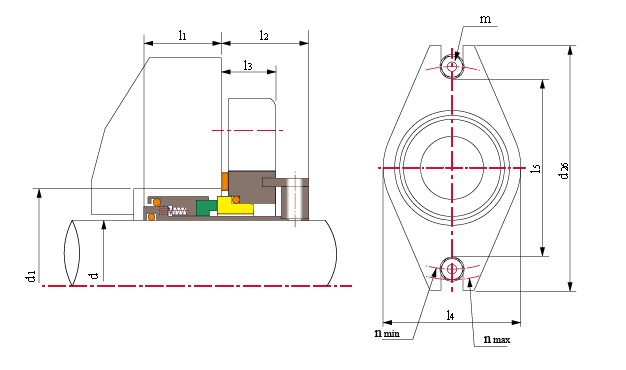

| d(mm) | d26 | l5 | l3 | l4 | d1 | n | m | l1 | l2 | ||
| min | max | min | max | ||||||||
| 24.0 | 101.6 | 55.6 | 20.7 | 56.1 | 40.0 | 48.0 | 69.9 | 88.9 | 12.0 | 28.6 | 31.8 |
| 25.0 | 101.6 | 55.6 | 20.7 | 56.1 | 41.0 | 48.0 | 69.9 | 88.9 | 12.0 | 28.6 | 31.8 |
| 28.0 | 104.8 | 58.8 | 20.7 | 59.3 | 44.0 | 50.0 | 73.1 | 92.1 | 12.0 | 28.6 | 31.8 |
| 30.0 | 108.0 | 61.9 | 20.7 | 62.4 | 46.0 | 54.0 | 76.2 | 95.3 | 12.0 | 28.6 | 31.8 |
| 32.0 | 108.0 | 61.9 | 20.7 | 62.4 | 48.0 | 54.0 | 76.2 | 95.3 | 12.0 | 28.6 | 31.8 |
| 33.0 | 108.0 | 61.9 | 20.7 | 62.4 | 49.0 | 55.0 | 76.2 | 95.3 | 12.0 | 28.6 | 31.8 |
| 35.0 | 108.0 | 66.7 | 20.7 | 67.2 | 51.0 | 59.0 | 81.0 | 95.3 | 12.0 | 28.6 | 31.8 |
| 38.0 | 114.3 | 71.5 | 22.3 | 72.0 | 57.2 | 62.0 | 85.8 | 101.6 | 12.0 | 28.6 | 33.4 |
| 40.0 | 114.3 | 71.5 | 22.3 | 72.0 | 58.0 | 64.0 | 85.8 | 101.6 | 12.0 | 28.6 | 33.4 |
| 43.0 | 120.7 | 74.6 | 22.3 | 75.1 | 61.0 | 67.0 | 88.9 | 108.0 | 12.0 | 28.6 | 33.4 |
| 45.0 | 127.0 | 77.8 | 23.8 | 78.3 | 63.5 | 69.0 | 92.1 | 114.3 | 12.0 | 30.2 | 35.0 |
| 48.0 | 133.4 | 81.0 | 23.8 | 81.5 | 66.7 | 72.0 | 95.3 | 120.7 | 12.0 | 30.2 | 35.0 |
| 50.0 | 133.4 | 81.0 | 23.8 | 81.5 | 68.0 | 74.0 | 95.3 | 120.7 | 12.0 | 30.2 | 35.0 |
| 53.0 | 139.7 | 84.2 | 25.4 | 84.7 | 71.0 | 77.0 | 101.6 | 123.9 | 16.0 | 30.2 | 36.5 |
| 55.0 | 146.1 | 87.3 | 25.4 | 87.8 | 74.0 | 79.0 | 104.8 | 130.2 | 16.0 | 30.2 | 36.5 |
| 58.0 | 165.1 | 95.3 | 25.4 | 98.9 | 79.4 | 85.7 | 115.9 | 146.0 | 20.0 | 30.2 | 36.5 |
| 60.0 | 165.1 | 95.3 | 25.4 | 98.9 | 79.4 | 85.7 | 115.9 | 146.0 | 20.0 | 30.2 | 36.5 |
| 63.0 | 177.8 | 111.2 | 25.4 | 121.2 | 85.8 | 101.6 | 131.8 | 158.7 | 20.0 | 28.6 | 41.2 |
| 65.0 | 177.8 | 111.2 | 25.4 | 121.2 | 88.9 | 101.6 | 131.8 | 158.7 | 20.0 | 28.6 | 41.2 |
| 68.0 | 177.8 | 111.2 | 25.4 | 121.2 | 92.1 | 101.6 | 131.8 | 158.7 | 20.0 | 28.6 | 41.2 |
| 70.0 | 177.8 | 111.2 | 25.4 | 121.2 | 92.1 | 101.6 | 131.8 | 158.7 | 20.0 | 28.6 | 41.2 |
| 75.0 | 190.5 | 125.4 | 31.7 | 130.7 | 98.5 | 114.3 | 146.1 | 171.4 | 20.0 | 30.2 | 50.8 |
| 80.0 | 190.5 | 125.4 | 31.7 | 130.7 | 101.6 | 114.3 | 146.1 | 171.4 | 20.0 | 30.2 | 50.8 |
| 85.0 | 203.2 | 135.0 | 31.7 | 140.2 | 108.0 | 123.8 | 155.6 | 184.1 | 20.0 | 30.2 | 50.8 |
| 90.0 | 215.9 | 144.5 | 31.7 | 149.7 | 114.3 | 133.3 | 165.1 | 196.8 | 20.0 | 30.2 | 50.8 |
| 95.0 | 215.9 | 144.5 | 31.7 | 149.7 | 117.5 | 133.3 | 165.1 | 196.8 | 20.0 | 30.2 | 50.8 |
| 100.0 | 228.6 | 154.0 | 31.7 | 156.1 | 123.9 | 139.7 | 174.7 | 209.5 | 20.0 | 30.2 | 50.8 |
